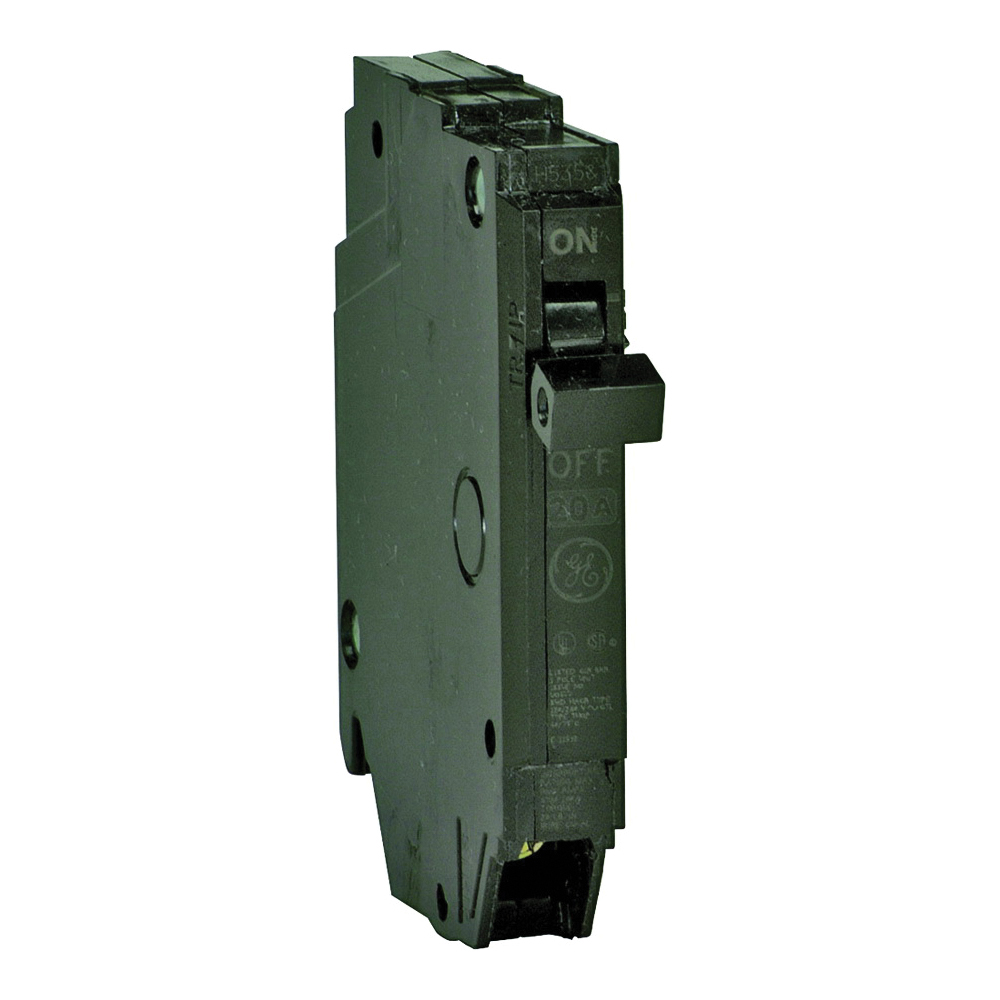

Industrial Solutions THQP130 Feeder Circuit Breaker, Type THQP, 30 Amp, 1 -Pole, 120/240 V, Plug Mounting
Sku: 180309
$6.79
13 Available at
San Marcos
Location:
Aisle 26
GE Industrial Solutions Circuit Breaker Options:THQP130 30 Amp, 1 Pole
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 Amp #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Type
Type THQP
Voltage Rating
120/240
Current Rating
30
Operating Frequency
50/60
Number of Phases
1
Number of Poles
1
Interrupt Rating
10
Frame Type
Q-Line
Actuator Type
Toggle
Trip Type
Non-Interchangeable
Wire Size
8 to 4
Terminal Type
Lug
Mounting Type
Plug
Dimensions
3.28 in L x 0.5 in W x 2.58 in H
Operating Temperature
60 to 75
Suitable for
Reverse Feed
