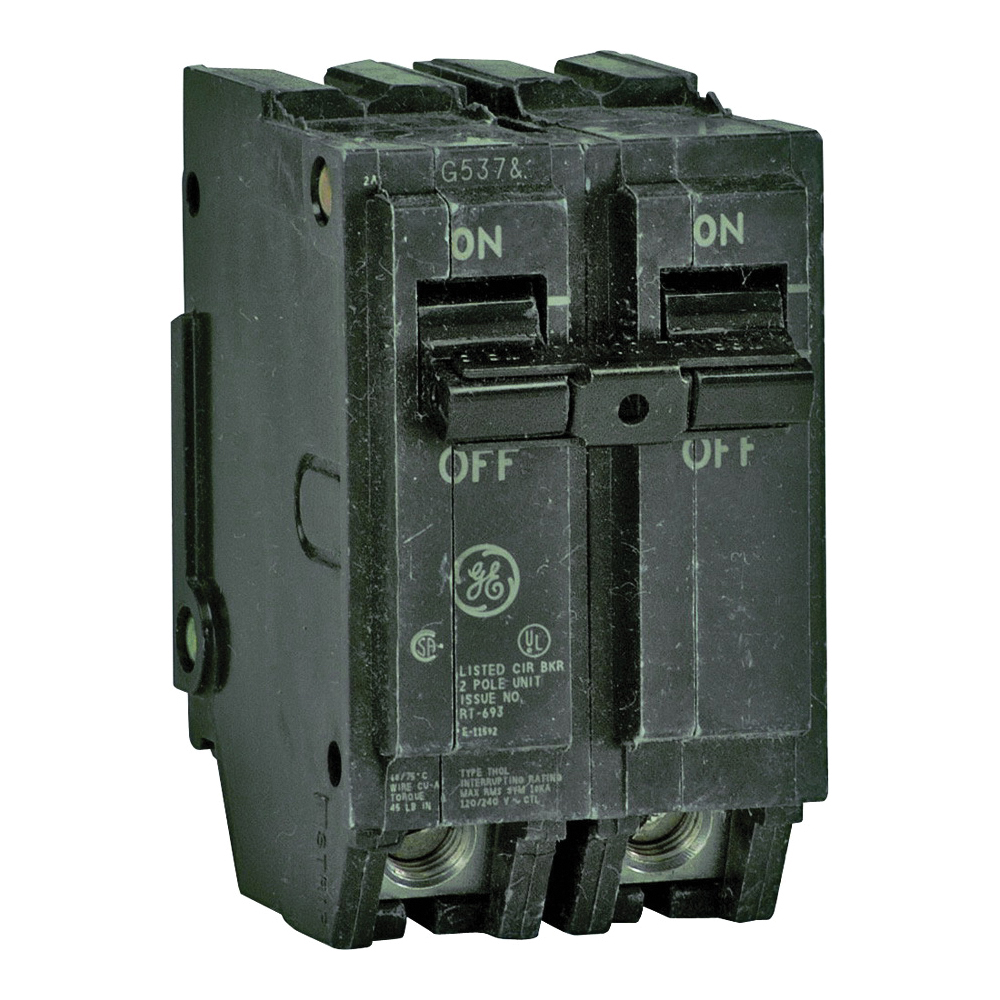

Industrial Solutions THQL2160 Feeder Circuit Breaker, Type THQL, 60 Amp, 2 -Pole, 120/240 V, Plug Mounting
Sku: 180339
$15.49
1 Available at
San Marcos
Location:
Aisle 26
GE Industrial Solutions Circuit Breaker Options:THQL2160 60 Amp, 2 Pole
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 Amp 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Type
Type THQL
Voltage Rating
120/240
Current Rating
60
Operating Frequency
50/60
Number of Phases
1
Number of Poles
2
Interrupt Rating
10
Frame Type
Q-Line
Actuator Type
Quick-Make, Quick-Break
Trip Type
Non-Interchangeable
Trip Sensitivity
600
Wire Size
8 to 3, 8 to 2
Terminal Type
Lug
Mounting Type
Plug
Dimensions
3.28 in L x 2 in W x 2.38 in H
Operating Temperature
60 to 75
Suitable for
Reverse Feed
