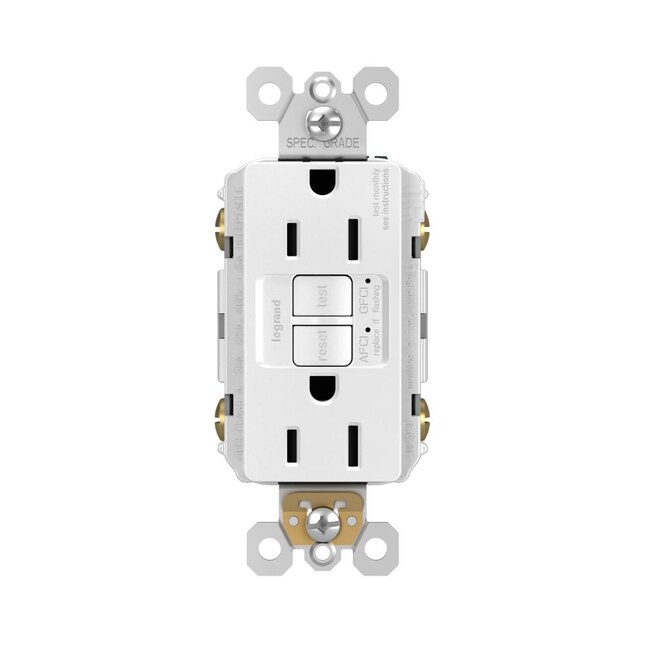

radiant AFGF152TRWCCV4 AFCI/GFCI Receptacle, 2 -Pole, 15 A, 125 VAC, Back Wiring, NEMA: 5-15R
Sku: 18110098
$31.99
2 Available at
San Marcos
Location:
Aisle 25
GFCI Outlets White:P&S Tamper Rdnt AFGF152TRWCCV4 15A
Pass & Seymour dual-function AFCI/GFCI receptacles are the latest innovation in electrical safety and a code-approved alternative to dual-function AFCI/GFCI breakers. Designed to protect against electrical fires caused by arc faults and injury due to electrical shock, these new devices are compliant with NEC AFCI and GFCI requirements in kitchens and laundry areas for new construction, circuit modifications/extensions and replacement receptacles.
- Feed-through protection
- Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space
- High impact-resistant, thermoplastic construction for superior strength and durability
- Auto-ground clip assures a positive ground to metal box
- Ground terminal back-wire for fast installation
- Tamper-resistant automatic shutter system prevents young children form inserting common household objects
- Patented SafeLock protection if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected
Voltage Rating
125
Current Rating
15
Number of Poles
2
Number of Wires
3
Wiring Type
Back
Operating Temperature
-35 to 66
Material
Thermoplastic
Color
White
Dimensions
1.73 in W x 1.36 in D x 4.2 in H
Frequency Rating
60
NEMA Configuration
5-15R
