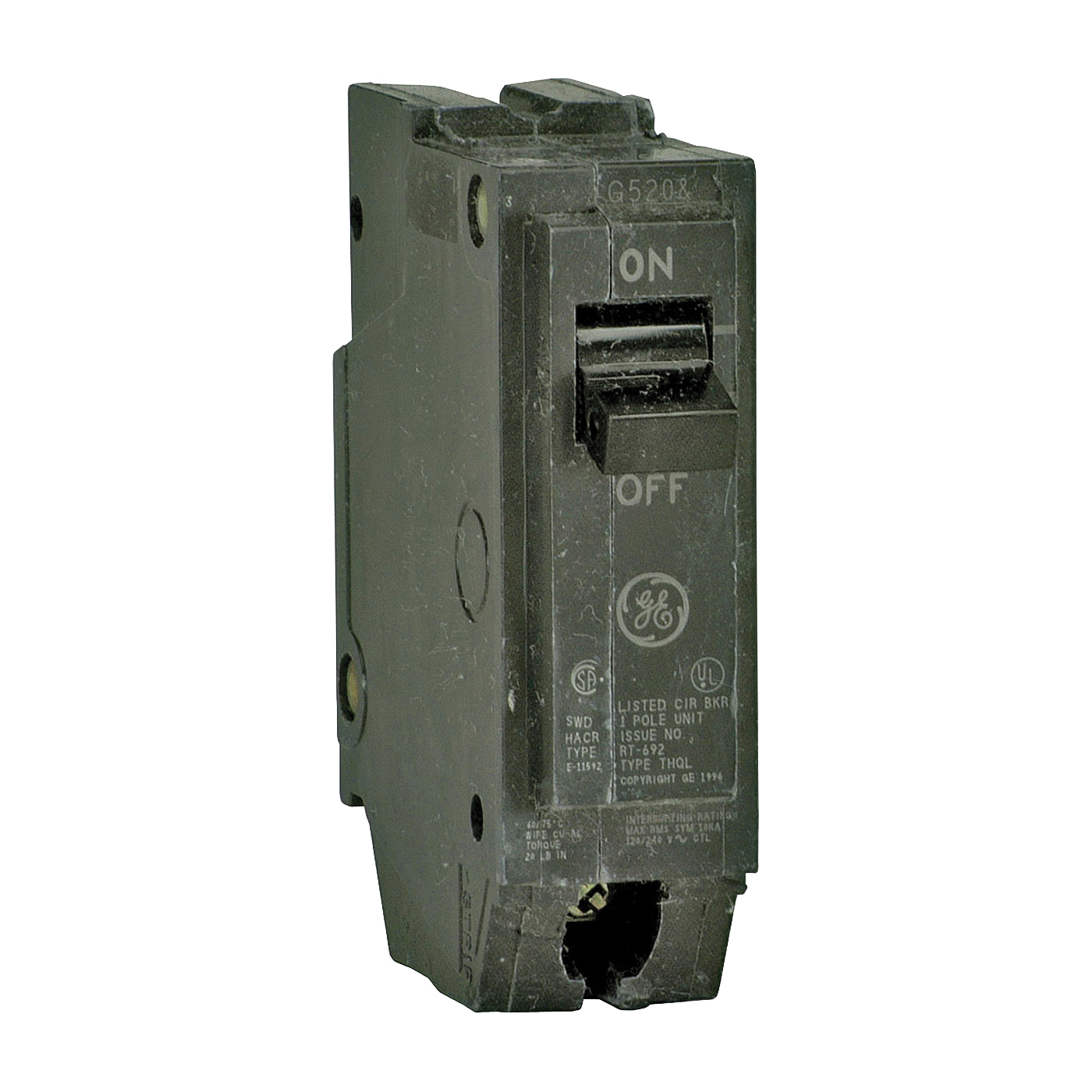

Industrial Solutions THQL1115 Feeder Circuit Breaker, Type THQL, 15 Amp, 1 -Pole, 120/240 V, Plug Mounting
Sku: 18030901
$6.99
2 Available at
San Marcos
Location:
Aisle 26
GE Industrial Solutions Circuit Breaker Options:THQL1115 15 Amp, 1 Pole
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 Amp 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
Type
Type THQL
Voltage Rating
120/240
Current Rating
15
Operating Frequency
50/60
Number of Phases
1
Number of Poles
1
Interrupt Rating
10
Frame Type
Q-Line
Actuator Type
Quick-Make, Quick-Break
Trip Type
Non-Interchangeable
Trip Sensitivity
150
Wire Size
14 to 8, 12 to 8
Terminal Type
Screw Clamp
Mounting Type
Plug
Dimensions
3.28 in L x 1 in W x 2.38 in H
Operating Temperature
60 to 75
Suitable for
Reverse Feed
